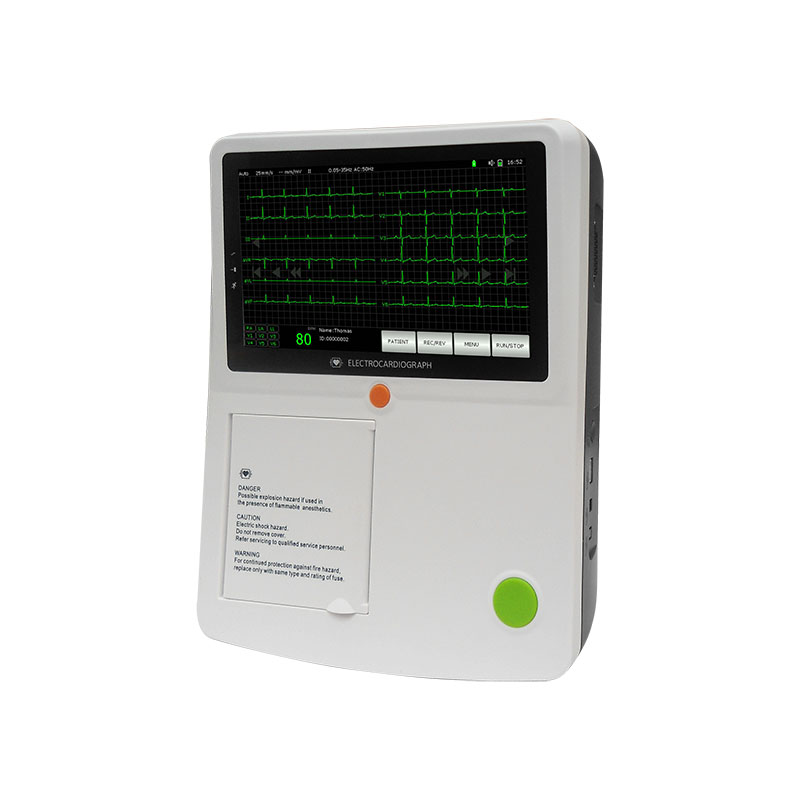

High quality Medical equipment ECG device SUN-6031
| Place of Origin | Shanghai, China |
| Brand Name | Sunbright |
| Model Number | SUN-6031 |
| Instrument classification | Class II |
| Input circuit | Floating |
| Type | ecg machine |
| Voltage tolerance | ± 500mV |
| Resolution | 12bit/1000Hz |
| Time constant | > 3.2s |
| Operation mode | Manual/Auto |
| Filter | AC. EMG Filter |
| Drift filter | Anti-Drift System |
| Package | 256mm*204mm*66mm |
| Gross Weight | 3Kg |
| Recorder | High resolution thermal printer |
Supply Ability
Supply Ability:20000 Unit/Units per Year
Packaging & Delivery
Packaging Details:Sea-worthy packing/Air-worthy packing
Port:Shanghai

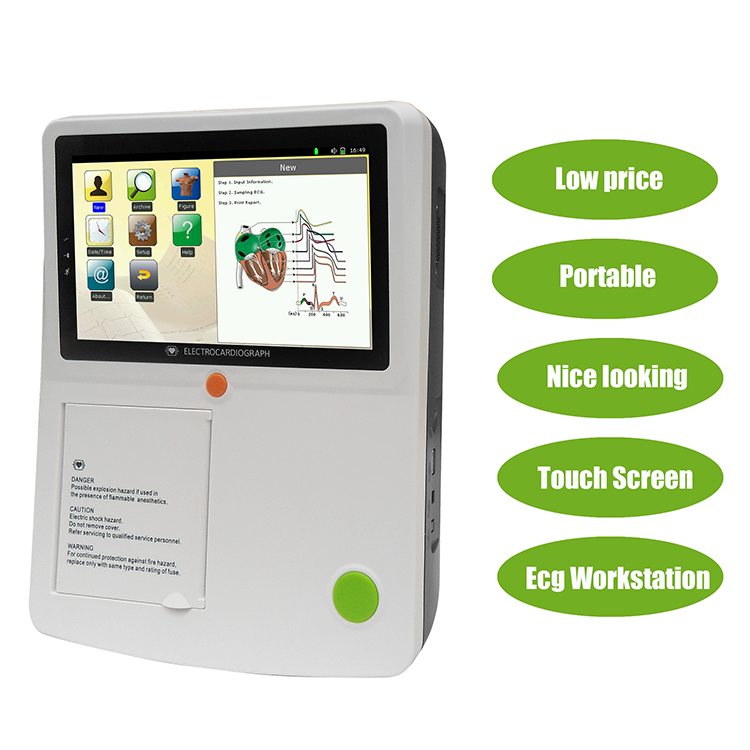

high quality full digital hot selling portable 3 channel ecg machine

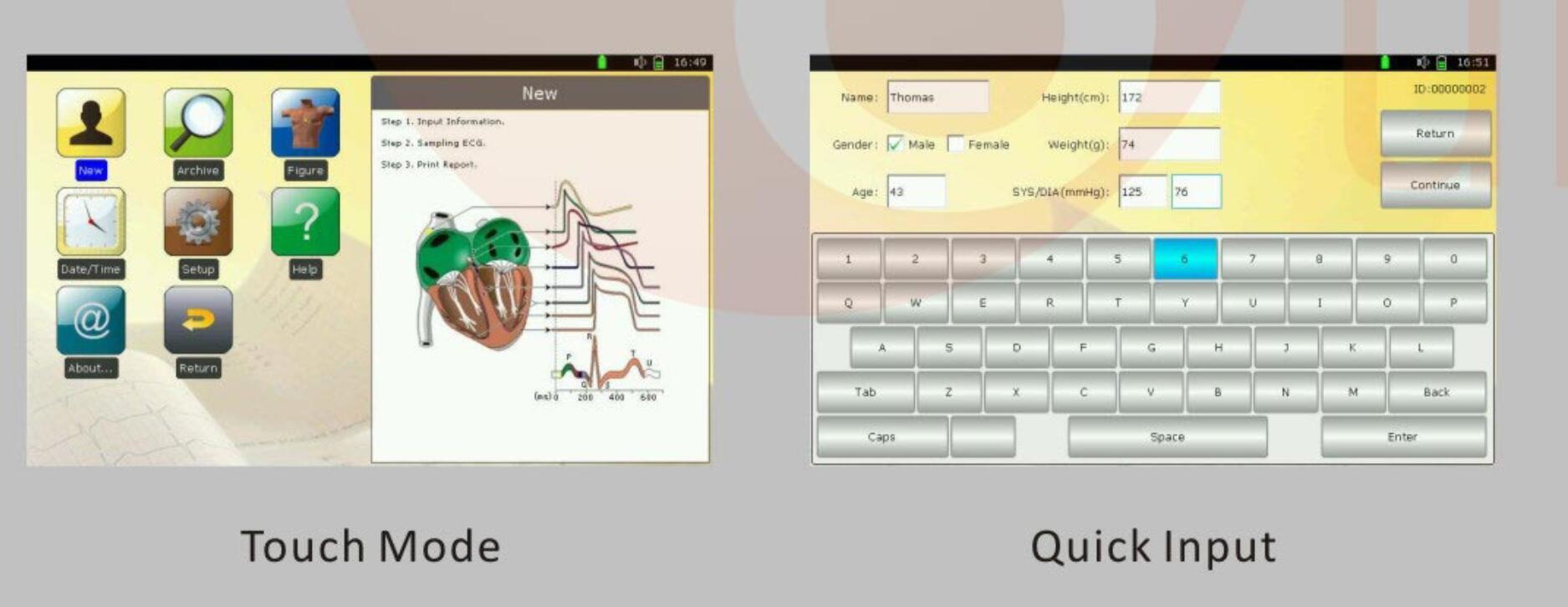

Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.7” color touch screen.Sensitive filters of ADS, HUM, and EMG.Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.Automatic adjustment of baseline for optimal recording.
Thermal printer with 80mm print paper, synchronization print
Lead off & lack off paper detection function.
Built-in rechargeable li-ion battery (11.1V/4000mAh), AC/DC power conversion.
Adapt to 100-240V, 50/60Hz AC power supply
Historical data and patient’s information can be reviewed and printed.
Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
The machine can store over 400 ECG reports in its built-in flash.
Sleep mode to save energy and extend LCD life
The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.
Connectivity/Media/Peripherals
CMRR | ≥ 100dB, with AC Filter | Calibrating voltage | 1mV± 3% |
Input circuit | Floating | Voltage tolerance | ± 500mV |
Input circuit current | ≤ 0.1µ A | Time constant | > 3.2s |
Resolution | 12bit/1000Hz | Frequent response | 0.05Hz~150Hz |
Operation mode | Manual/Auto | Noise level | ≤ 15µ Vp-p |
Filter | AC. EMG Filter | Threshold | ≤ 20µ V |
Drift filter | Anti-Drift System | Paper speed | 12.5, 25, 50mm/s (± 3%) |
Input Impedance | > 50MΩ | Sensitivity | 5 ，10 ，20mm/mV |
Patient current leakage | < 10µ A | Recorder | High resolution thermal printer |
Specification of fuse | T1.6A 250V Ø5×20 | Battery | Built-in rechargeable Li-ion battery 11.1V(2200mAh) |
Recording paper | Thermal recording paper | Package | 256mm*204mm*66mm |
