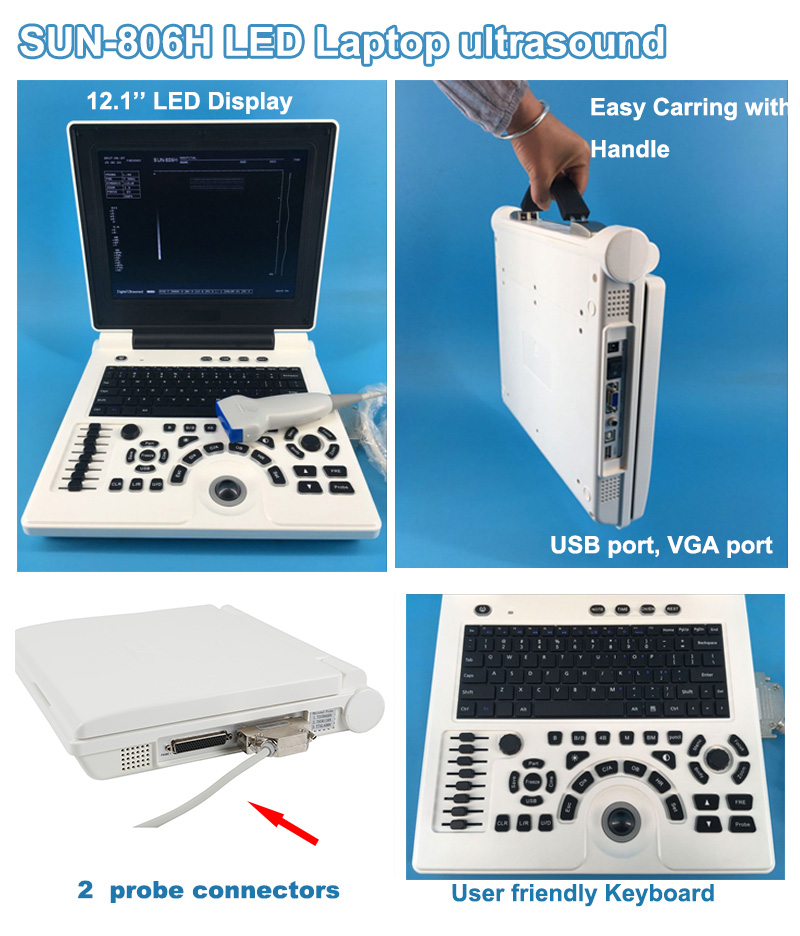

New doppler ultrasound clinic hospital OBGYN baby scanner SUN-806H PLUS
| Place of Origin | Shanghai, China |
| Brand Name | Sunbright |
| Model Number | SUN-806H PLUS |
| Warranty | 2 years |
| After-sale Service | Return and Replacement |
| Instrument classification | Class II |
| Type | New doppler ultrasound SUN-806H PLUS |
| Display | 12.1 inch |
| battery work time | more than 3 hours |
| Material | Metal, Plastic2 |
| Volume | 3-Distance, Ellipse, EDist |
| battery typle | Li-lion battery 3.2Ah |
| application | general, OB/GYN, cardiology, urinary, small organs, etc. |
| Quality Certification | ce |
| M mode | Distance, time, slope, Heart Rate |
| Size | 308 * 310 * 66 |
Supply Ability
Supply Ability: 20000 Unit/Units per Year
Packaging & Delivery
Packaging Details:Sea-worthy packing/Air-worthy packing
Port:Shenzhen/Shanghai
Lead Time
| Quantity(Units) | 1 – 5 | >5 |
| Est. Time(days) | 5 | To be negotiated |
Physical specification
Dimension | 308mm L 310mm W 66mm H |
Net Weight | 4 Kg |
Monitor | 12inch LED |
Resolution | 1024*768 |

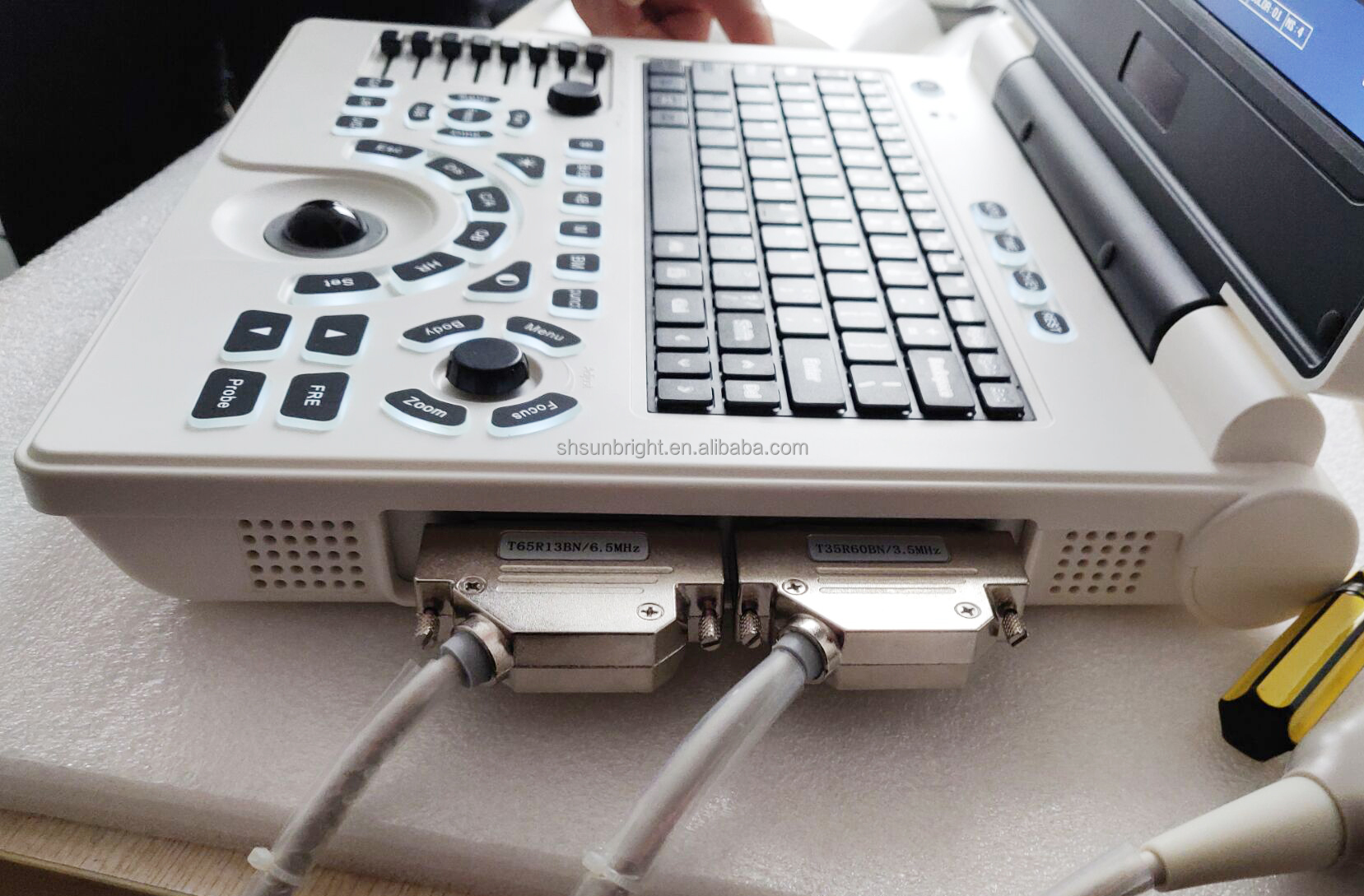

Probe ports | 2-probe active ports |
Harddisk | 60G SSD |
Imaging Modes
B B&M 2B 4B, THI, PWImaging parametersImaging processing Persistence, Gamma, edge enhancement, compression curve, gray, 16 kinds of pseudo-color processing, focuses, canvas, Fov, contrast, brightness, Invert b/v, Mirror, ReversePW parameters: PW processing, spectrum reversal, envelope threshold, automatic envelope, volumeGary scale: 256Dynamic range 80-280dBGain control total gain 8–slice TGC
Scanning depth 400mm max
Acoustic power 3 levels adjustable real-time display MI/TI
Zoom 10*magnify
Cine-loop 200-2000 frames max auto/manually play back

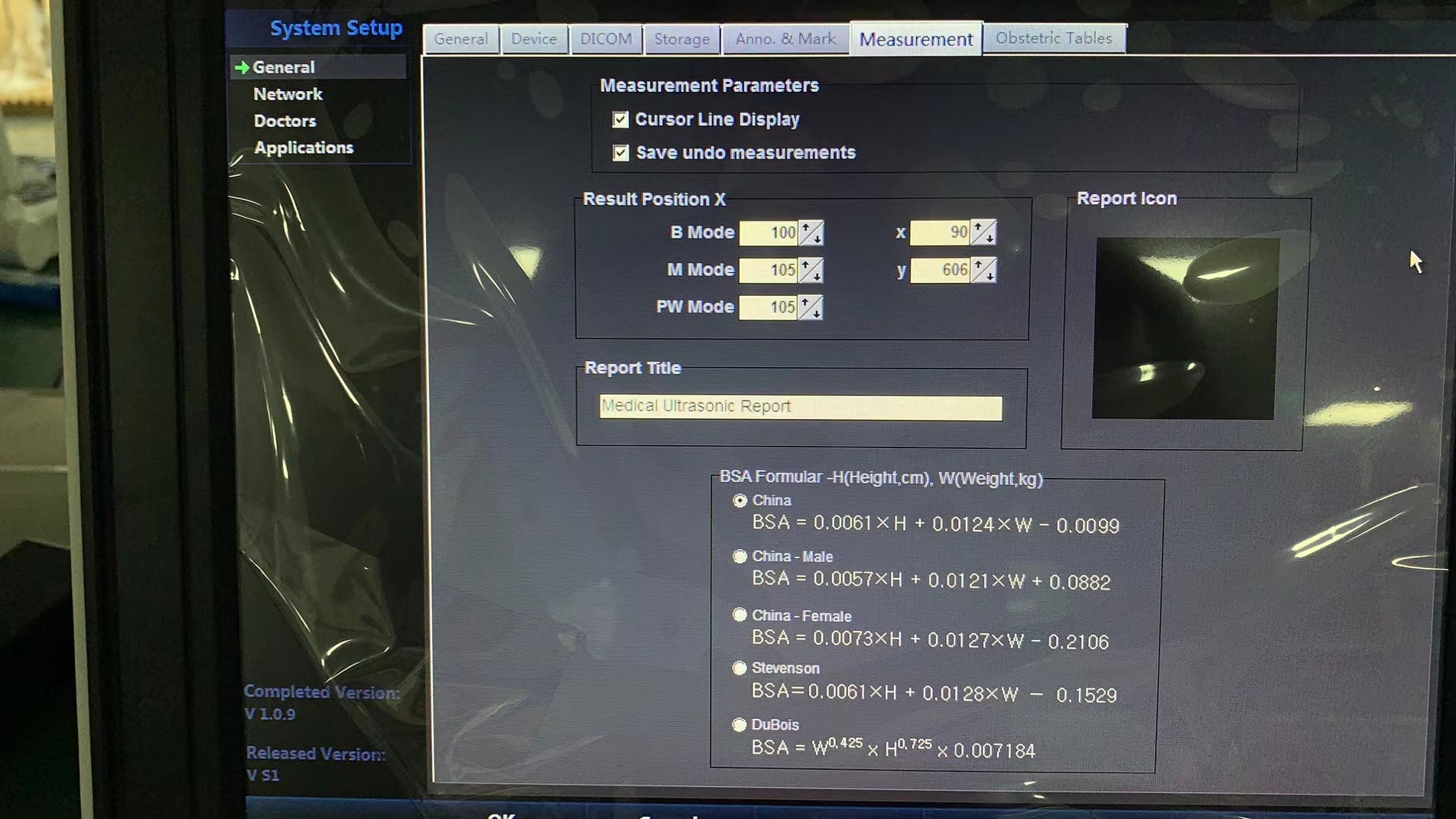

Measurement

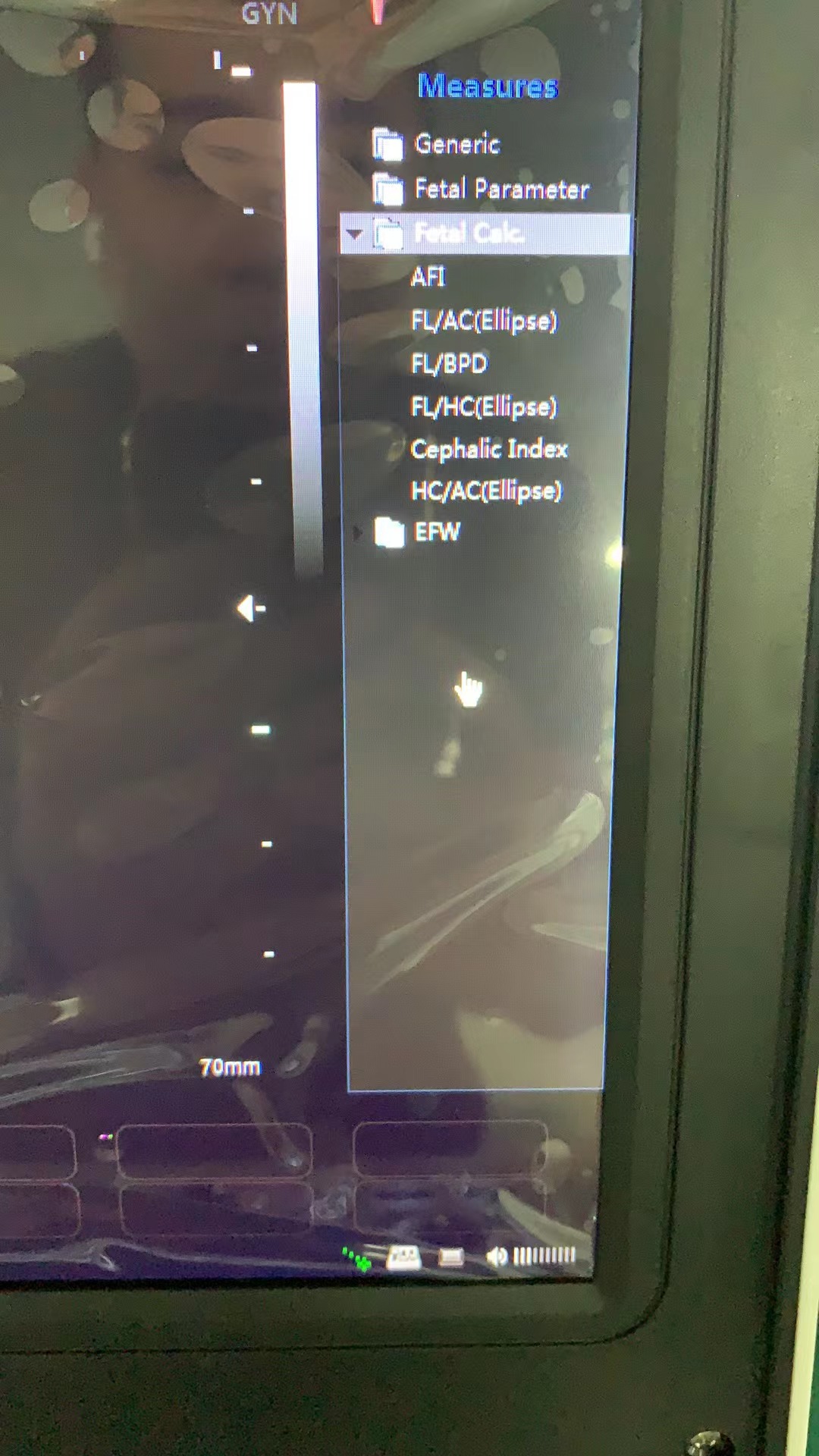

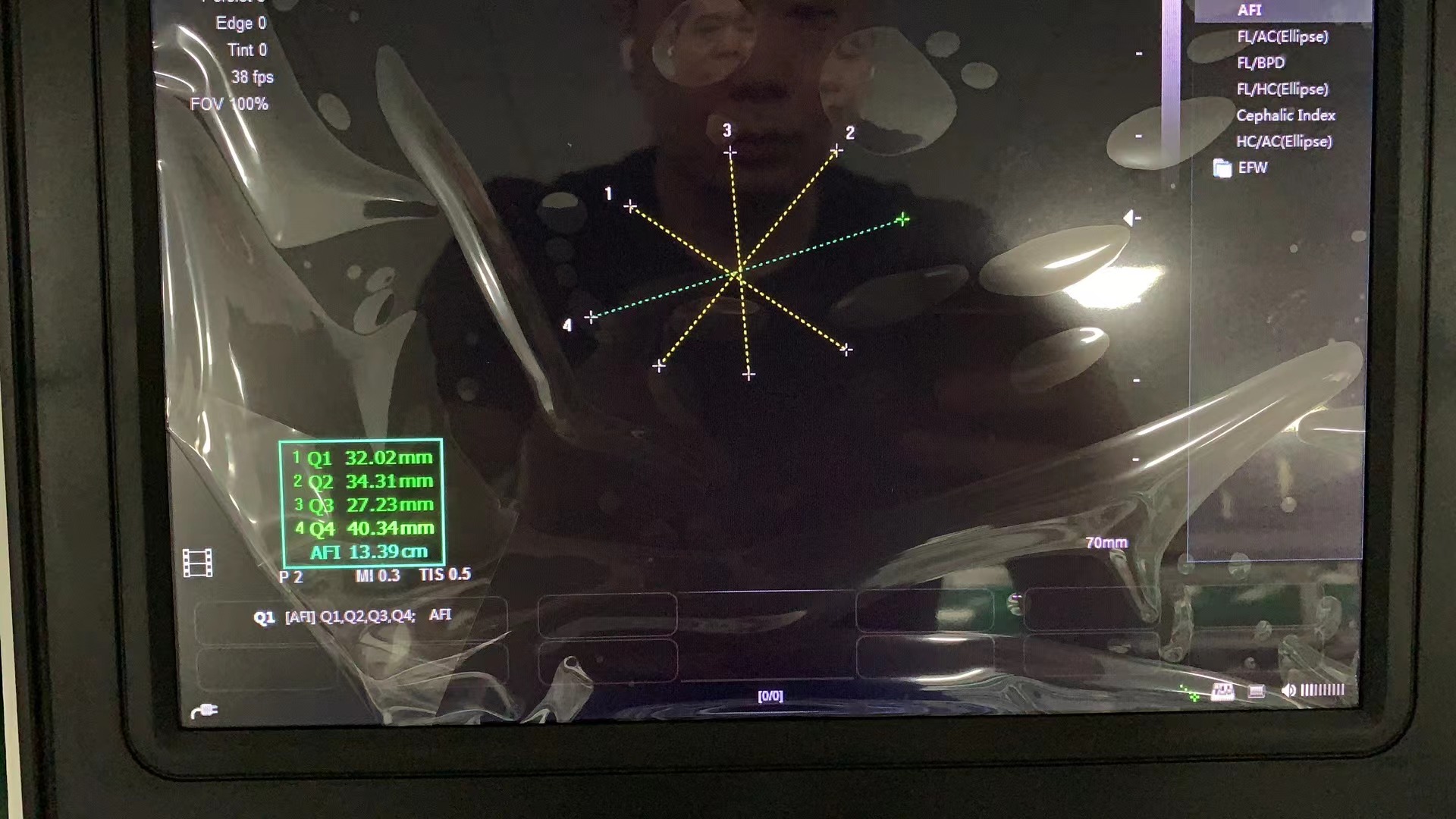

General measurement Depth, Distance, Trace Length, Ratio (D),Area: Ellipse, TraceVolume: 3-Distance, Ellipse, EDistM mode: Distance, time, slope, Heart RateClinical measurement package: Abdomen, OB, Gynecology, Cardiac, Urology, Small PartsBody markMore than 64 body marks for versatile application
General measurement Depth, Distance, Trace Length, Ratio (D),Area: Ellipse, TraceVolume: 3-Distance, Ellipse, EDistM mode: Distance, time, slope, Heart RateClinical measurement package: Abdomen, OB, Gynecology, Cardiac, Urology, Small PartsBody markMore than 64 body marks for versatile application
With body position markers
Language supported
Chinese, English, Spanish, Russian, French, Portuguese, Germany

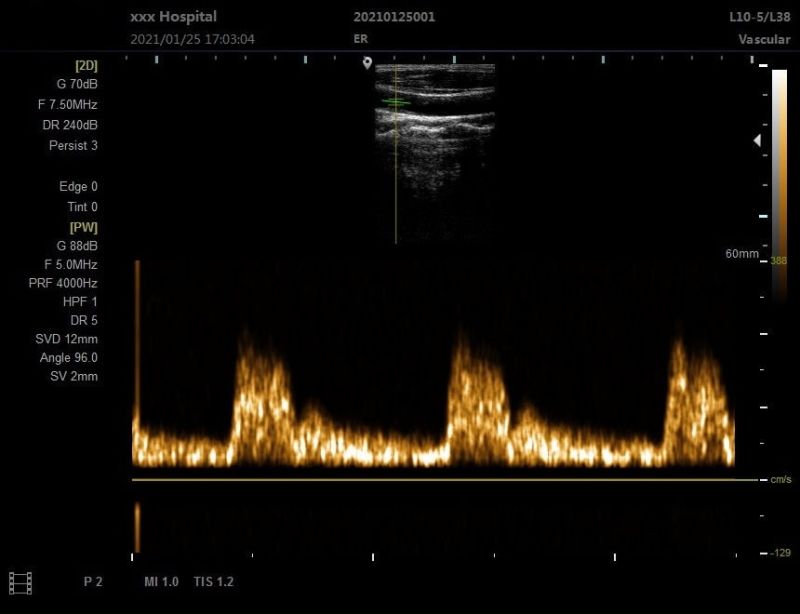

Scanning images
Standard configuration features

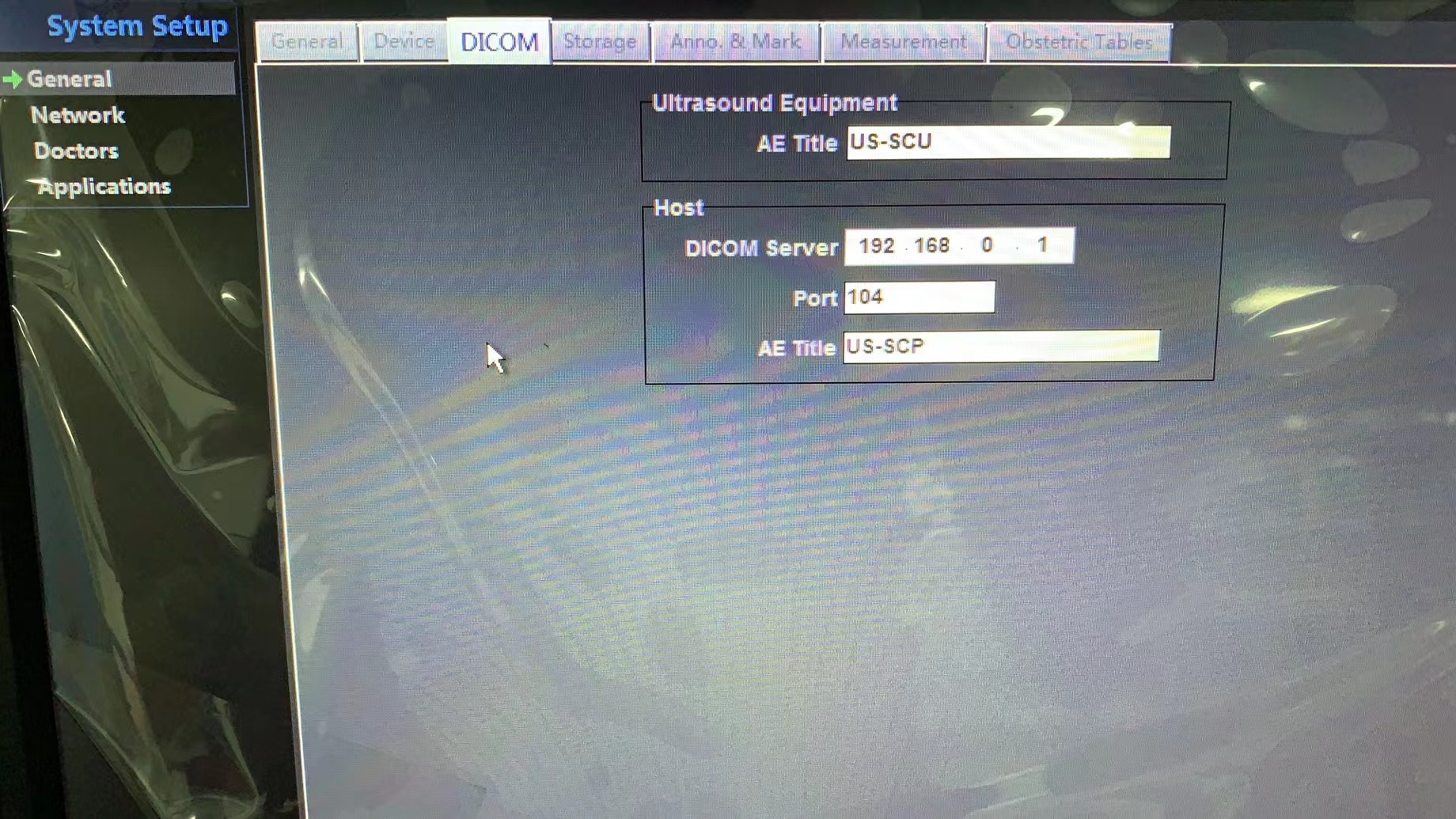

Peripheral ports: VGA, 2 USB ports, HDMI port, DICOM port, LINE OUT port |
Electrical Power supply: 100-240V~50/60Hz 100VA |
Li-lion battery 3.2Ah |
Video & PC printer (Optional) |
